aterial: Made of certified Ti6A14V Eli Titanium Alloy.
Thickness: 2 mm
P. Width: 15.4 mm (35.8 mm for Large)
D. Width: 27.4 mm (41.6 mm for Large)

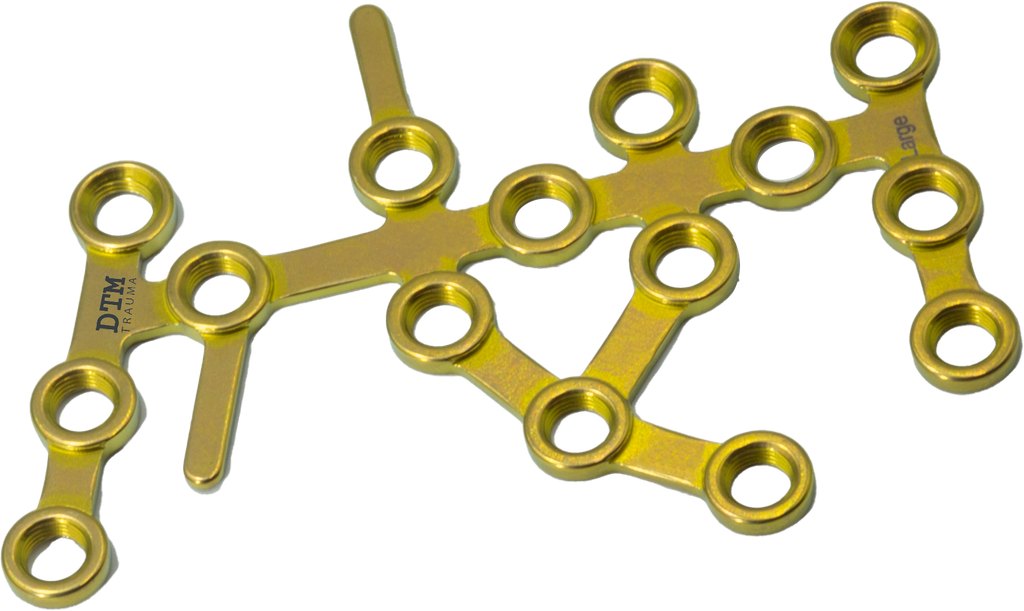

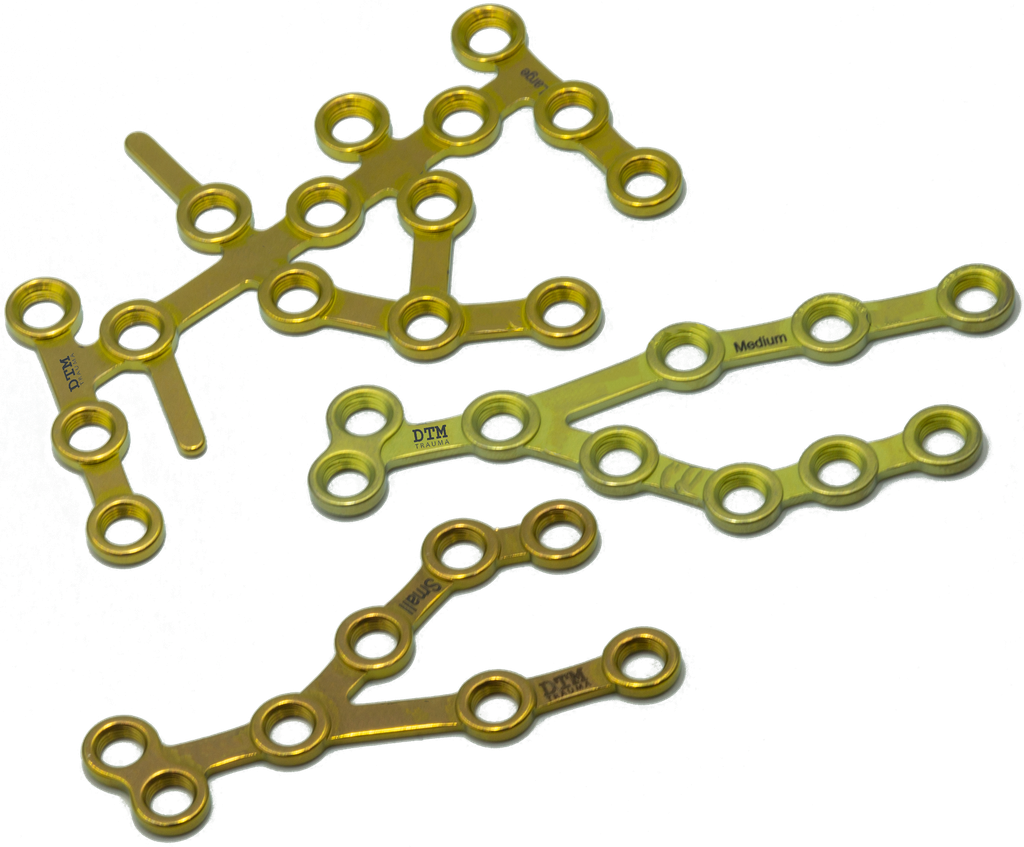

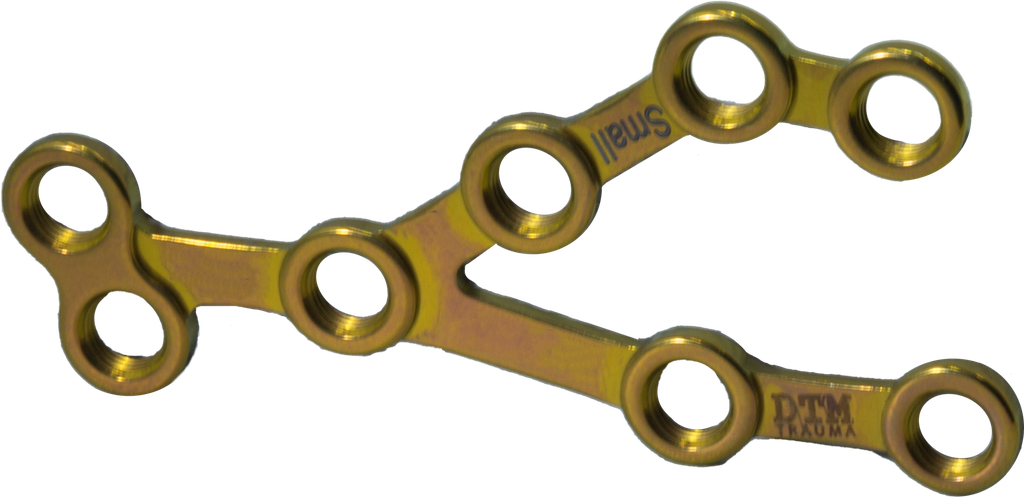

This plate is indicated for fractures and osteotomies of the calcaneus including, but not limited to, extra-articular, intra-articular, joint depression, tongue type, and severely comminuted fractures
*Made of Ti6Al4V Eli alloy
*S-M-L
*Has an anatomical shape corresponding to the anatomy of the calcaneus
*Large number of holes address multiple fracture patterns
Material: Made of certified Ti6A14V Eli Titanium Alloy.
Thickness: 3 mm
P. Width: 35 mm
D. Width: 15.3 mm
Material: Made of certified Ti6A14V Eli Titanium Alloy.
Thickness: 2.5 mm
P. Width: 34 mm
D. Width: 15 mm
Material: Made of certified Ti6A14V Eli Titanium Alloy.
Thickness: 3.4 mm
P. Width: 23 mm
D. Width: 16 mm
